Givi Topbox plates
In order to fit a topbox, you will need the specific Givi fitting kit for your bike, and in most cases you will also need a plate.
-
Monokey plate options are: M3 / M5 / M7 / M8A / M8B / M9A / M9B / M10
(note, M10 plate not compatible with Alaska series top cases) - Monolock plate options are: M6M / M5M / MM
| Monokey | Monolock | ||||||||||
| Rack type: | F | SR / FZ | F | SR / FZ | |||||||
| M3 | M5 | M7 | M8A | M8B | M9A | M9B | M10 | MM | M6M | M5M | |
| Nylon | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| Aluminium | Silver | Black | Silver | Black | Silver | Black | |||||
| Anti vibration | Yes | ||||||||||
| Stop light kit compatible | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| Remote control kit compatible | Yes | Yes | Yes | Yes | Yes | Yes | |||||
| Compatible with EX1SRA* | Yes | Yes | Yes | Yes | |||||||
| Compatible with EX2M** | Yes | Yes | Yes | Yes | Yes | ||||||
| Bracket for U shaped padlock | Yes | ||||||||||
| Maximum load | 10kg | 10kg | 10kg | 6kg | 6kg | 6kg | 6kg | 10kg | 3kg | 3kg | 3kg |
*EX1SRA - expandable bag holder giving you the option to swap out hard luggage for soft luggage
** EX2M - bag holder giving you the option to swap out hard luggage for soft luggage
Please refer to the My Motorcycle section of Givi's website to get the correct fitment or contact us for help with your bike.
Universal plates:

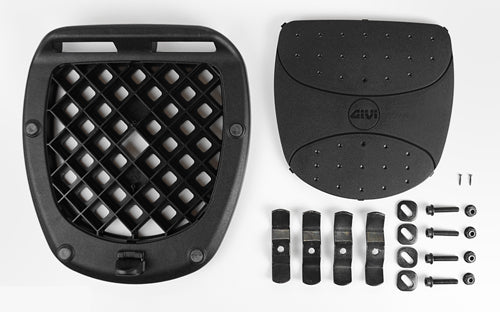

The E251 kit enables you to mount a Monokey top box to a bike’s original rack. It can be used with the stop light kit / remote control kit. Max load 10kg. The Z113C2 is a universal Monolock kit matching what is supplied with Monolock urban cases. Max load 3kg.
A note on load capacity:
The load carrying capacity of the plate is limited by its ability to absorb vibration. This is the reason why nylon Monokey plates typically have a higher load capacity than the aluminium plates. The load capacity specification relates to the contents of the top box and is extra to the weight of the box itself.
